Coil Storage Racking System
Coil Storage Racking System
- Selective Pallet Rack Design: Built on a selective pallet racking structure with dedicated coil support brackets.
- 1–2 Ton Load Capacity: Supports 1,000–2,000 kg per level, depending on the approved configuration.
- Complete Roll Support System: Central metal shaft supplied with the support brackets.
- Two Mounting Options: Side-mounted and front-mounted configurations for different rack arrangements.
- Versatile Roll Storage: Designed for fabric, textile, paper, packaging film, and other compatible rolled materials.
Coil Storage Racking – Product Overview

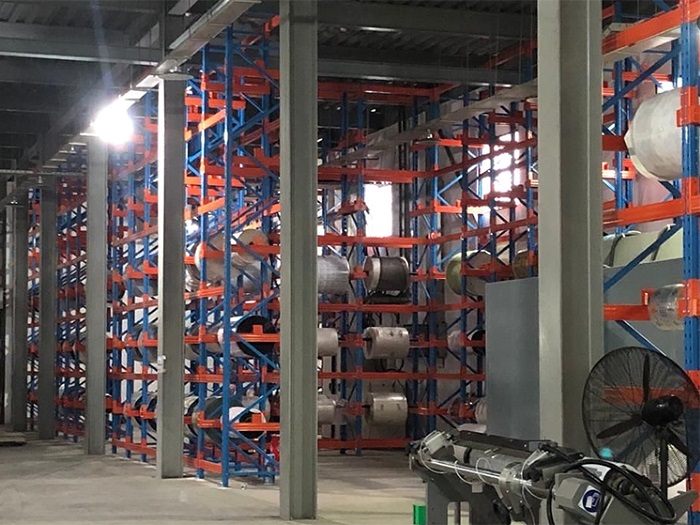

Coil Storage Racking is a specialized roll storage system based on selective pallet racking. Dedicated coil support brackets and a central metal shaft are incorporated into the rack structure to accommodate rolled materials and allow them to rotate around the shaft.
Designed for fabric rolls, textile materials, paper rolls, packaging films, and other compatible rolled products, the system helps organize roll inventory while making practical use of warehouse storage space.
With side-mounted and front-mounted support options, the system extends the functionality of selective pallet racking and can complement other warehouse storage solutions.
Key Features
01. Selective Pallet Rack Integration
Uses a selective pallet racking structure with dedicated roll support components, providing an additional storage function within a familiar warehouse racking system.
02. 1–2 Tons Per Level
Available with a designed load capacity of 1,000–2,000 kg per level, subject to rack configuration and technical verification.
03. Rotating Shaft Support
A central metal shaft supports the roll and allows rotation around its axis. The shaft is supplied together with the coil support brackets.
04. Two Mounting Options
Side-mounted and front-mounted bracket arrangements are available to accommodate different racking layouts and access requirements.
05. Configurable Storage Layout
Rack dimensions, support positions, and storage levels can be configured according to roll dimensions, storage quantities, and warehouse conditions.
Two Mounting Options
Coil support brackets can be installed in two configurations. Both use paired support components to hold a central metal shaft and must be selected according to the rack structure and roll handling requirements.
Side-Mounted Coil Supports

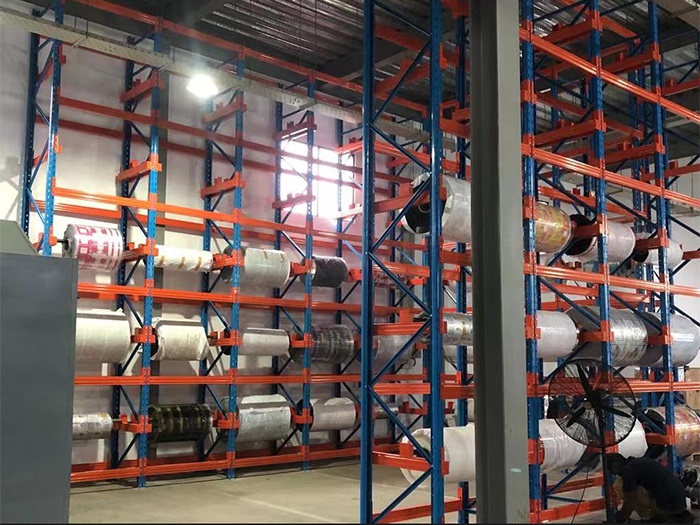

The support brackets are secured to the sides of the pallet rack frames. A pair of brackets supports the central metal shaft, allowing compatible rolls to be positioned and rotated within the designed storage arrangement.
Front-Mounted Coil Supports
The support brackets are attached to the front uprights of the pallet rack. Installed as a pair, they hold the central metal shaft in a front-mounted arrangement for compatible roll storage applications.
Both configurations include the central metal shaft. Final mounting details and structural compatibility must be confirmed before installation.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Coil Storage Racking |
| Base Structure | Selective Pallet Racking |
| Load Capacity | 1,000–2,000 kg per level |
| Support Components | Paired Coil Support Brackets |
| Central Shaft | Metal Shaft Included with Support Brackets |
| Mounting Options | Side-Mounted / Front-Mounted |
| Roll Rotation | Rotation Around the Central Shaft |
| Applications | Fabric, Textile, Paper and Packaging Film Rolls |
| Rack Dimensions | Customizable According to Project Requirements |
| Rack Compatibility | Subject to Structural and Technical Verification |
Note: Load capacity refers to the designed capacity per storage level, not the capacity of an individual shaft or bracket. Final specifications depend on the approved rack configuration.
Applications
Coil Storage Racking is suitable for a range of rolled materials when the product dimensions, weight, and handling requirements are compatible with the rack design.
Textile & Fabric Storage
Organizes fabric rolls and textile materials used in garment manufacturing, upholstery, and textile production.
Garment Manufacturing
Provides dedicated roll storage positions for different fabric types, widths, colors, and production batches.
Paper & Printing
Supports the organized storage of compatible paper rolls used in printing and paper converting operations.
Packaging Materials
Accommodates suitable packaging film rolls and other flexible rolled materials within the approved load range.
Customization & Rack Compatibility
Aceally can review coil storage racking configurations according to roll diameter, roll width, material weight, storage quantity, and warehouse layout. Support positions and mounting arrangements are selected to suit the intended application.
When integrating coil supports into an existing selective pallet racking system, upright dimensions, frame construction, connection details, shaft specifications, and structural load limits must be checked to confirm compatibility.
Request a Coil Storage Racking Solution
Looking for a practical way to store fabric, textile, paper, or packaging film rolls? Aceally can help evaluate a suitable coil storage racking configuration for your warehouse.
Contact us with your roll dimensions, weight, storage quantity, and rack requirements to request a customized quotation.
