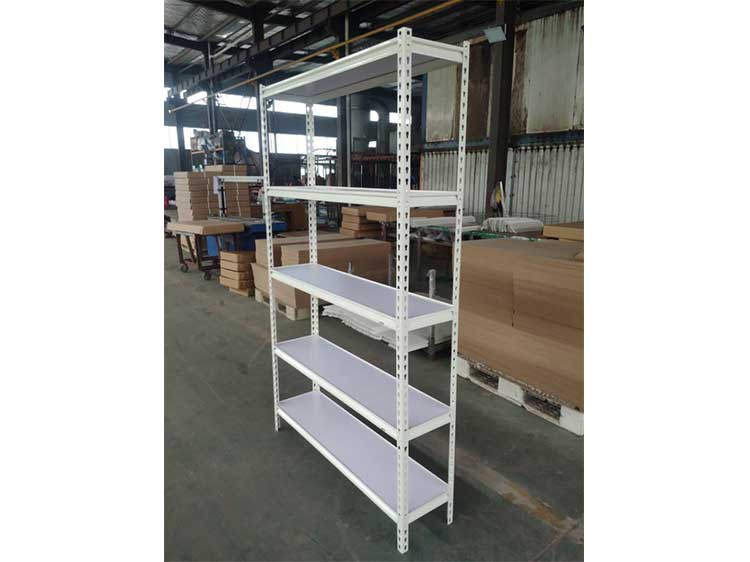

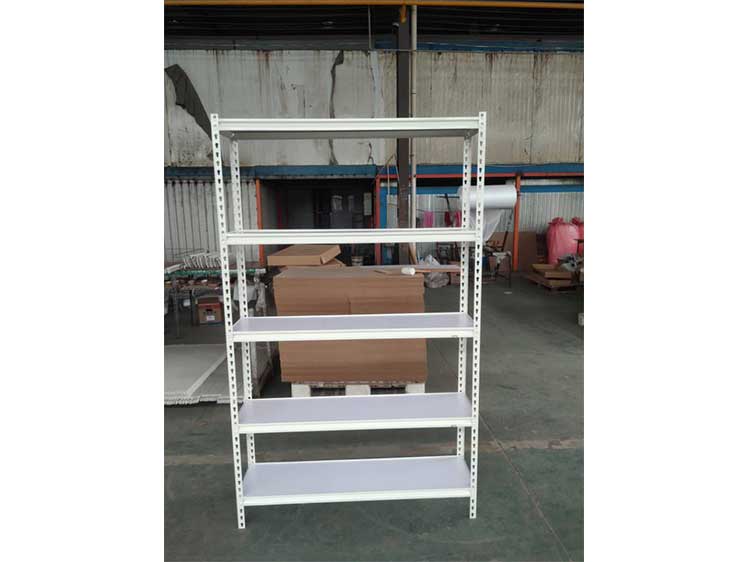

Light-duty Z-beam Boltless Rivet Shelving With MDF
Light-duty Z-beam Boltless Rivet Shelving With MDF

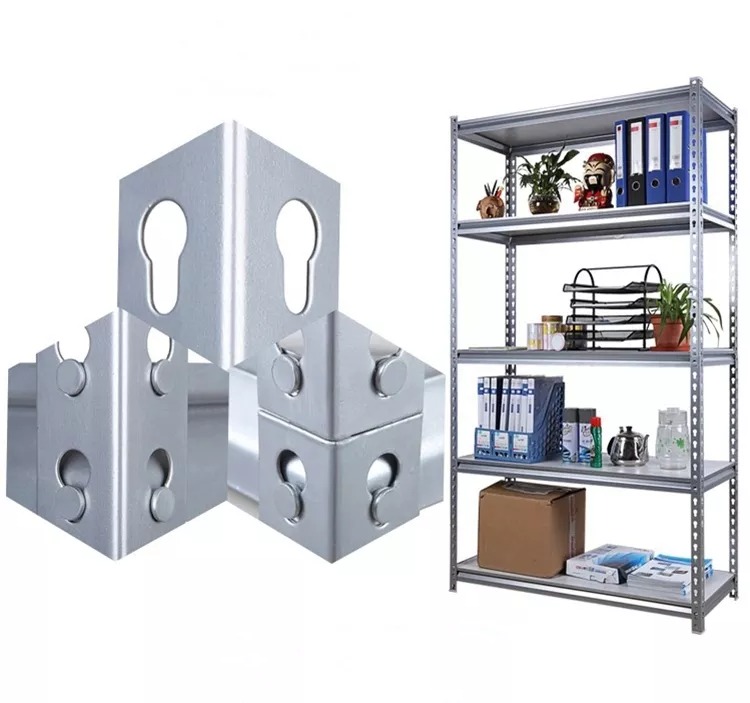

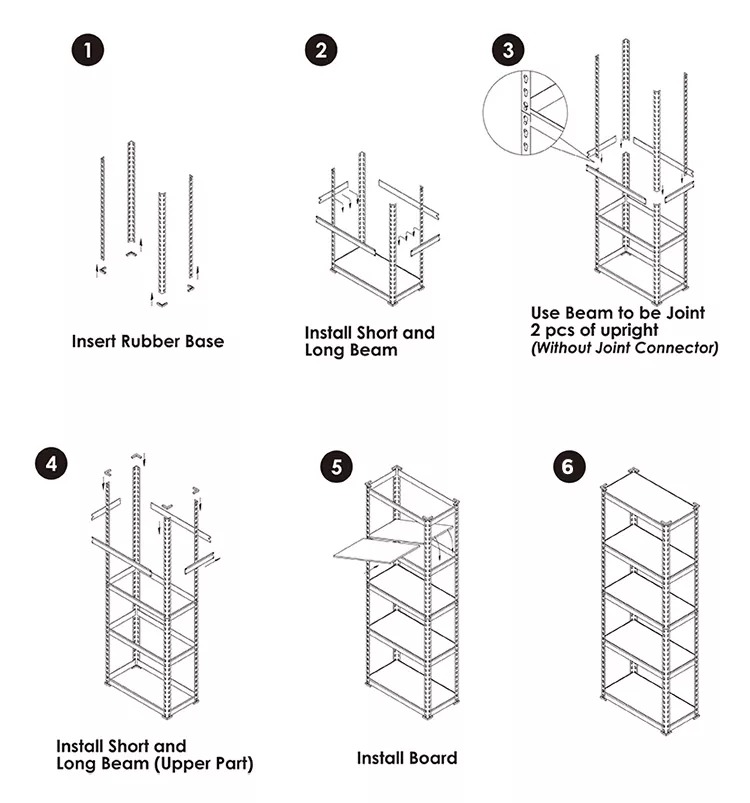

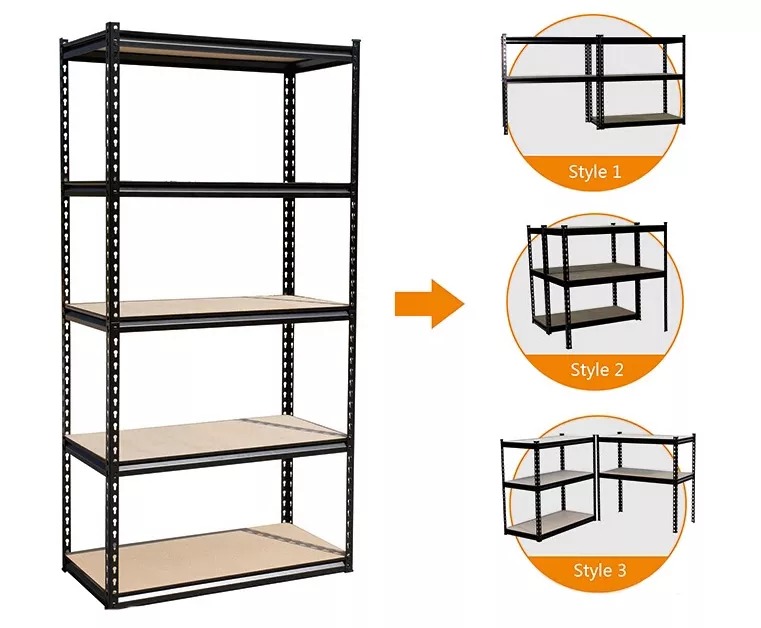

Being joined together with rivets, this shelving can be fitted at their length, width and height randomly. This type of shelving has a nice looking, fast and easy to disassemble and assemble without special tools.
Z-beam boltless rivet racking

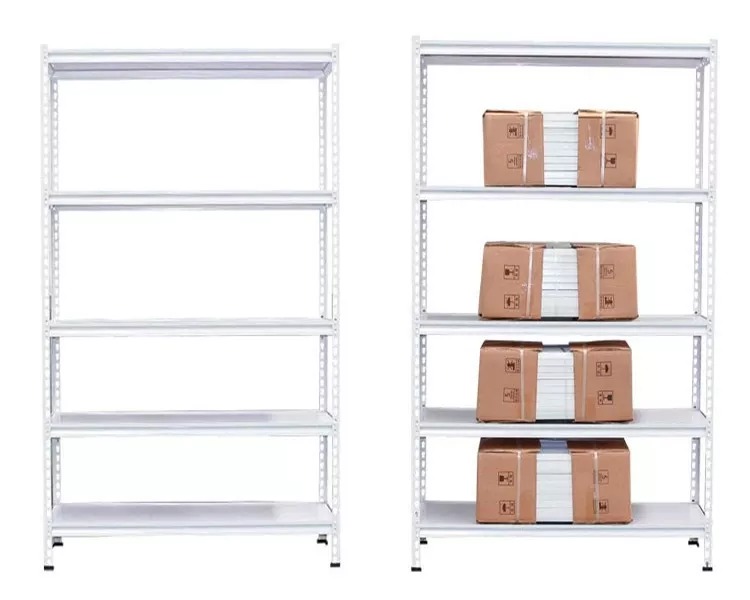

Being joined together with rivets, this shelving can be fitted at their length, width and height randomly. This type of shelving has a nice looking, fast and easy to disassemble and assemble without special tools. The height can adjust on 38.1mm centers. The Z-beam boltless rivet shelf can be equipped with steel shelf, wood shelf or wire mesh deck. This rack are suitable for hifi storage and showing in store.
Z-beam Boltless rivet racking specifications
| Product Name | SPEC | Thickness | Length | Capacity |
|---|---|---|---|---|
| Angle post | 37*37mm | 1.2-1.9mm | H24″-144″ | 500-1000kgs |
| Heavy angle post | 47*47mm | 1.5-1.9mm | H24″-144″ | 1000-2500kgs |
| Concealed slot post | 38*38mm | 0.9mm | H24″-8″ | 500-1000kgs |
| Double rivet beams I | 67*21mm | 1.5-1.9mm | L12″-96″ | 50-150kgs |
| Double rivet beams II | 68*25mm | 1.5-1.9mm | L12″-96″ | 100-250kgs |

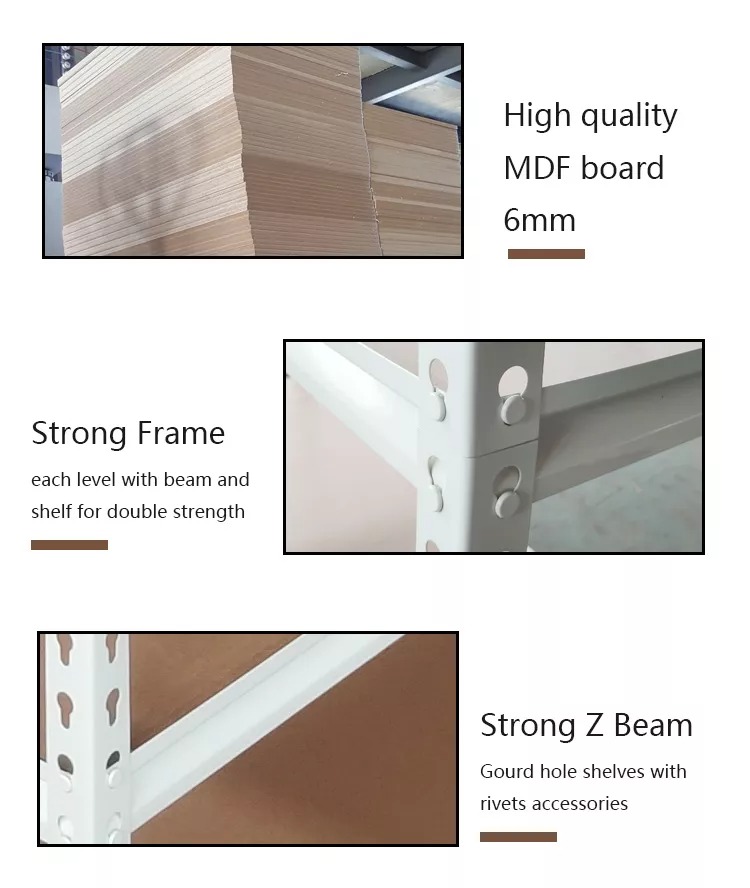

| Double rivet Z style beams | 54*22mm | 1.5-1.9mm | L12″-96″ | 100-250kgs |
| Double rivet channel beams I | 66*20*20mm | 1.9mm | L12″-96″ | 150-300kgs |
| Double rivet channel beams II | 68*25*25mm | 1.9mm | L12″-96″ | 150-300kgs |
| Heavy Double rivet channel beams I | 66*20*20mm | 3.0mm | L12″-96″ | 200-400kgs |
| Heavy Double rivet channel beams II | 68*25*25mm | 3.0mm | L12″-96″ | 200-400kgs |
| Single rivet beams | 25*25mm | 1.9mm | L12″-48″ | 50-100kgs |
| Heavy single rivet beams | 25*25mm | 3.0mm | L12″-48″ | 100-150kgs |
| Double rivet low profile beams | 50.8*1.8mm | 3.0mm | L12″-48″ | 50-100kgs |
| Shelf deck supports I | 60*20mm | 1.5-1.9mm | L12″-48″ | |
| Shelf deck supports II | 63*25mm | 1.5-1.9mm | L12″-48″ | |
| Medium density fireboard | 1220*2440mm | 9-18mm | L12″-48″ | |
| Tie plate | 2.0mm | Without fumigation | ||
| Plastic feet |
