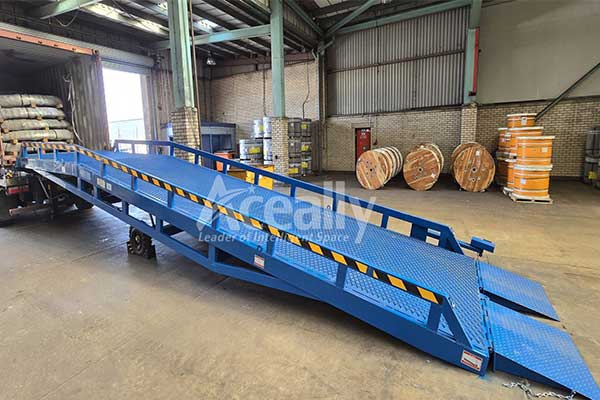

Last season, we proudly exported Project NO. AYRC20231027, a 15T Mobile Dock Ramp valued at USD15,000, to FELIXSTOWE, UK. This project, implemented in October 2023, has significantly facilitated the loading and unloading of goods from containers, boosting operational efficiency for our clients.
Our mobile dock ramps, renowned for their exceptional quality and safety standards, boast a rated loading capacity of 15 tons. However, adhering to our commitment to safety, we ensure that the design incorporates a maximum loading capacity exceeding the rated capacity by 30%.
With CE and ISO certifications, our products have garnered widespread acclaim globally, earning unanimous praise from satisfied customers in various countries.
In response to specific customer requirements, we collaborated closely to install additional side tractors on the mobile dock ramps, further enhancing their functionality and utility.
Despite encountering minor incidents post-delivery, our clients’ unwavering satisfaction and endorsement on platforms like LinkedIn underscore their appreciation for our products and brand.
The seamless collaboration with our client not only underscores our commitment to customer satisfaction but also sets the stage for enduring partnerships in the future.
Looking ahead, we anticipate further opportunities to innovate and deliver solutions that exceed expectations, solidifying our position as a trusted partner in the industry.
Project Details:
|
1 |
Overall size | 11300mm（L）*2200mm（W）*1100mm（H） |
|
2 |
Platform size | Slope length：7150mm（L）、Platform plate length：3000mm（L）
The tail plate length：750mm The tongue plate length：400mm Width：2200mm Steel plate thickness:5mm Steel mesh thickness:8mm |
|
3 |
Load | 15T |
|
4 |
Distribution power | Manual hydraulic pump, 2 hand legs+ 2 auxiliary legs |
|
5 |
Adjustable range | 1100-1800mm(H) |
|
6 |
Guardrail high | 300mm（100*50*4mm rectangular pipe） |
|
7 |
Main beam | 200*100*5mm rectangular pipeTotal 5 main beams |
|
8 |
Vice beam | 120*60*5mm |
|
9 |
Hydraulic cylinder | Φ80*Φ45（2 pcs） |
|
10 |
Hydraulic oil pipe | 32Pma |
|
11 |
Solid tire | 700-9 |
|
12 |
Container connectivity | The bridge body is welded with a hook and fixed with a steel chain |
|
13 |
Paint Color | Generally blue(adjustable); spray-paint |
|
14 |
Overall weight | ±4000kg |
Post time: Mar-21-2024
