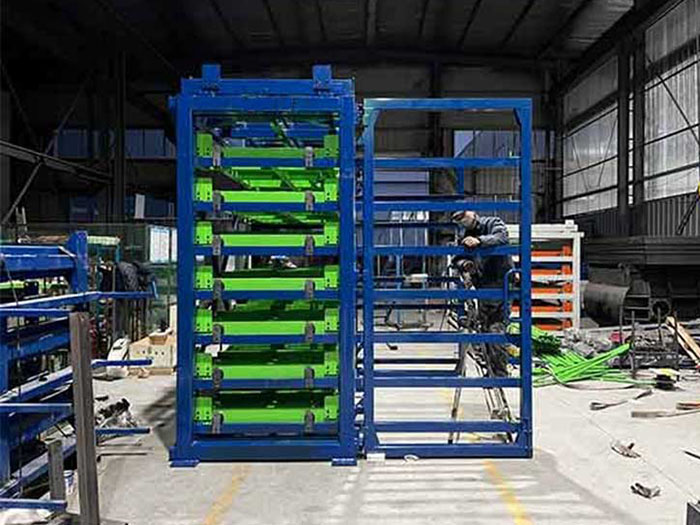

Roll Out Sheet Metal Storage Rack

A Roll-Out Sheet Metal Storage Rack is a heavy-duty storage system designed for organizing and accessing large, flat sheets of steel, aluminum, and other metal materials. Instead of stacking sheets directly on top of each other, the rack uses pull-out drawers or trays to provide individual access to stored materials.

By combining vertical storage with pull-out access, this sheet metal storage rack helps manufacturers and metal fabrication facilities make better use of floor space while simplifying the loading, unloading, and retrieval of heavy sheets. The roll-out design also reduces the need to manually move surrounding materials when accessing a specific sheet.

Why Use a Roll-Out Sheet Metal Rack?

Traditional sheet metal storage often requires materials to be stacked horizontally, making individual sheets difficult to access, especially when the sheets are large or heavy. Workers may need to move several sheets before reaching the required material, increasing handling time and the risk of damage.

A roll-out sheet metal rack provides a more organized alternative. Each storage level can hold a specific type or size of sheet, while the pull-out tray brings the material forward for easier access.

• Direct sheet access: Pull-out trays allow individual sheets to be accessed without removing surrounding materials.
• Better use of vertical space: Multiple storage levels make use of available warehouse height instead of relying only on floor space.
• Easier material handling: Extended trays provide a more accessible position for loading and unloading sheets.
• Improved material organization: Different sheet sizes and materials can be separated by storage level.
• Reduced material handling: Individual access helps minimize unnecessary repositioning and dragging of heavy sheets.

Key Features of Roll-Out Sheet Metal Storage Racks

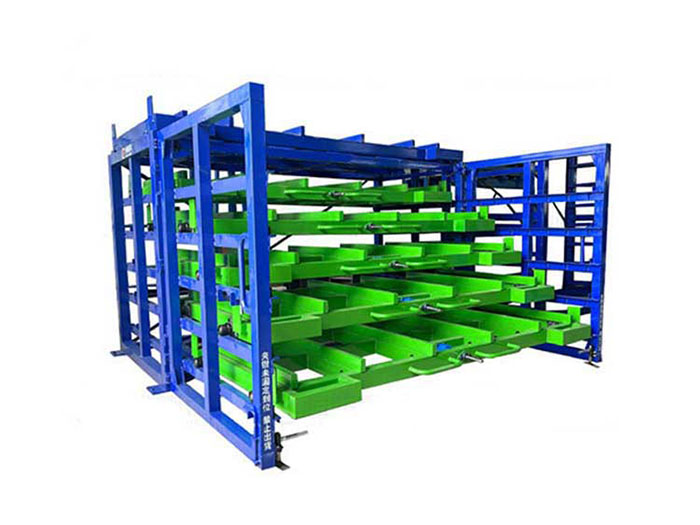

Pull-Out Drawer Design

Each storage level works as an individual pull-out drawer, allowing users to bring stored sheet metal forward for easier loading and retrieval.

Heavy-Duty Load Capacity

The rack is designed for heavy industrial sheet storage, with standard configurations supporting up to 3 tons per layer and customized configurations available for loads of up to 10 tons per layer.

Full Access to Stored Sheets

The roll-out structure provides direct access to each storage level, making it easier to retrieve specific sheets without disturbing materials stored on other levels.

Forklift-Compatible Loading

Many configurations can be used with forklifts for loading and unloading, helping reduce manual handling when working with large and heavy metal sheets.

Vertical High-Density Storage

Multiple drawers are arranged vertically to increase storage density while keeping individual sheet materials organized and accessible.

Mechanical or Automatic Operation

Standard configurations use mechanical operation, while customized systems can be configured with mechanical or automatic operating systems depending on the application.

Roll-Out Sheet Metal Rack Capacity and Dimensions

Roll-out sheet metal storage racks can be configured for different sheet dimensions, load requirements, and storage quantities. Standard configurations are available for sheet sizes up to 6000 × 1500 mm, while customized designs can be adapted to specific material sizes and warehouse requirements.

Parameter	Standard	Customized
Storage Sheet Size	3000 × 1500 mm / 6000 × 1500 mm	Customized
Load Capacity per Layer	3 tons	Up to 10 tons
Number of Drawers	6–7	2–10 drawers
Distance Between Layers	110–180 mm	Customized
Operation System	Mechanical	Mechanical or Automatic
Color	Orange / Blue	Customized

How Does a Roll-Out Sheet Metal Storage Rack Work?

The rack uses drawer-style storage levels that slide outward from the main frame. When a specific sheet is required, the corresponding tray is pulled out to provide direct access to the stored material.

1. Pull Out the Storage Tray

The required drawer is extended from the rack, bringing the stored sheet into an accessible position.

2. Load or Retrieve the Sheet

Once extended, the tray provides open access for loading or removing sheet metal manually or with suitable material-handling equipment.

3. Return the Tray

After loading or retrieval, the tray is pushed back into the rack to return the material to its vertical storage position.

4. Maintain Organized Vertical Storage

With multiple trays arranged vertically, different sheet materials can be stored separately while making efficient use of the available storage height.

Roll-Out Sheet Metal Rack vs. Traditional Sheet Storage

Feature	Roll-Out Sheet Metal Rack	Traditional Stacked Storage
Sheet Access	Individual drawer access	Sheets may need to be moved or separated
Space Utilization	Uses vertical storage space	Requires more floor space for horizontal stacking
Material Handling	Easier access for loading and retrieval	More handling may be required
Inventory Organization	Different materials can be separated by drawer	Materials may be mixed in stacked storage
Heavy Sheet Handling	Pull-out access reduces unnecessary repositioning	Individual sheets can be difficult to reach

Applications of Sheet Metal Storage Racks

Metal Fabrication Shops

Roll-out racks provide organized storage for steel, aluminum, and other sheet materials used in cutting, welding, and fabrication operations.

Manufacturing Plants

Manufacturing facilities can use individual storage levels to organize sheet materials according to size, material type, or production requirements.

Automotive and Aerospace Industries

These racks are suitable for facilities handling large quantities of sheet materials where organized storage and accessible material handling are important.

Sheet Metal Service Centers

Service centers can separate different sheet specifications while maintaining convenient access to frequently handled materials.

Warehouses and Distribution Centers

Vertical sheet storage helps warehouses organize large-format metal materials without relying entirely on floor-level stacking.

Customization and Compatibility

Roll-out sheet metal storage racks can be customized according to sheet dimensions, load requirements, drawer quantity, layer spacing, and warehouse layout. Standard configurations are available for common applications, while customized solutions can accommodate specific material-handling requirements.

• Customized storage dimensions for different sheet sizes
• Load capacities up to 10 tons per layer for customized configurations
• 2–10 drawers depending on storage requirements
• Customized spacing between storage levels
• Mechanical or automatic operating systems
• Customized rack colors
• Compatibility with forklifts and other material-handling equipment

With flexible configurations and heavy-duty construction, a Roll-Out Sheet Metal Storage Rack provides a practical solution for manufacturers, fabrication shops, service centers, and warehouses that need organized and accessible storage for large metal sheets.
