Teardrop Pallet Racking System
Teardrop Pallet Racking System
A reliable teardrop pallet racking system designed for efficient warehouse storage. With H240 upright frames, adjustable beams, and multiple accessories, it offers high load capacity and seamless compatibility with US-standard racking systems.

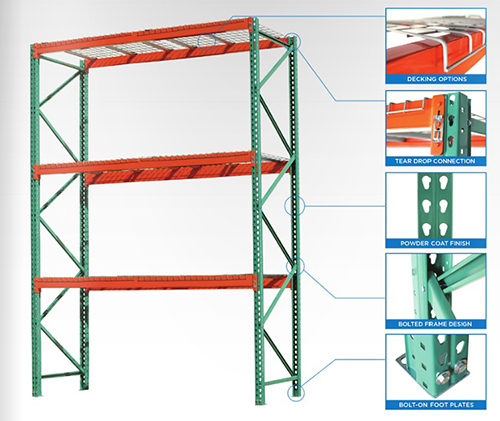

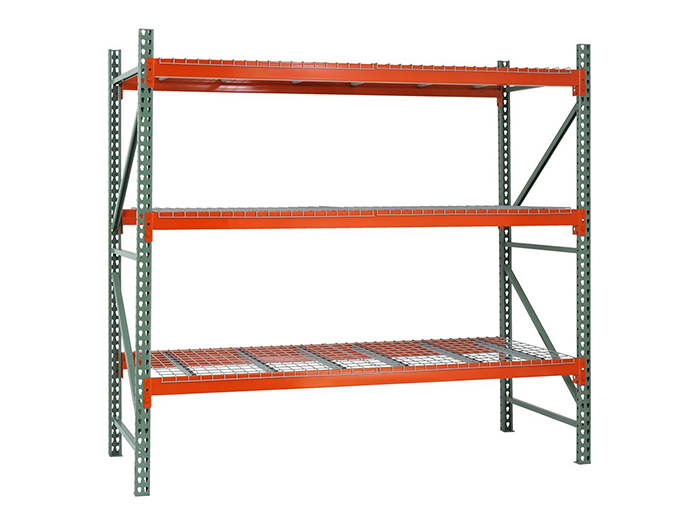

The teardrop pallet racking system is a versatile and cost-effective storage solution designed for palletized goods in warehouses and distribution centers. Featuring a boltless teardrop connection design, it allows for quick installation and flexible adjustment.Widely used across the United States, Canada, and Latin America, this system is fully compatible with standard North American racking configurations, making it an ideal choice for scalable warehouse operations.
Key Features

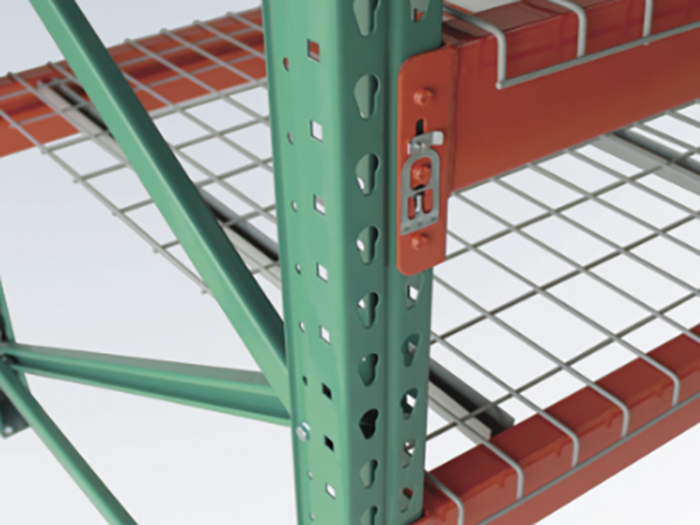

- Boltless teardrop connection for fast installation
- Adjustable beam levels for different pallet sizes
- High-strength steel construction
- Excellent load-bearing capacity
- Compatible with US standard systems
- Powder-coated or galvanized finish
- H240 upright frames available
- Flexible system expansion
Structural Components
Beams
- Step beams and box beams available

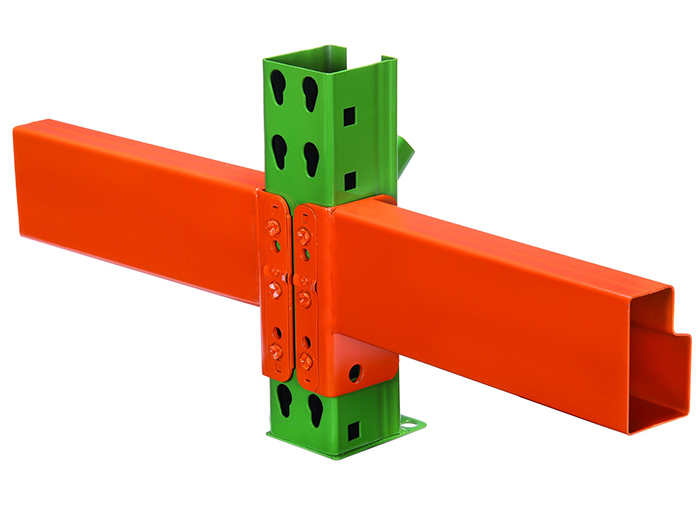

- Standard teardrop connectors
- Adjustable levels for flexible storage

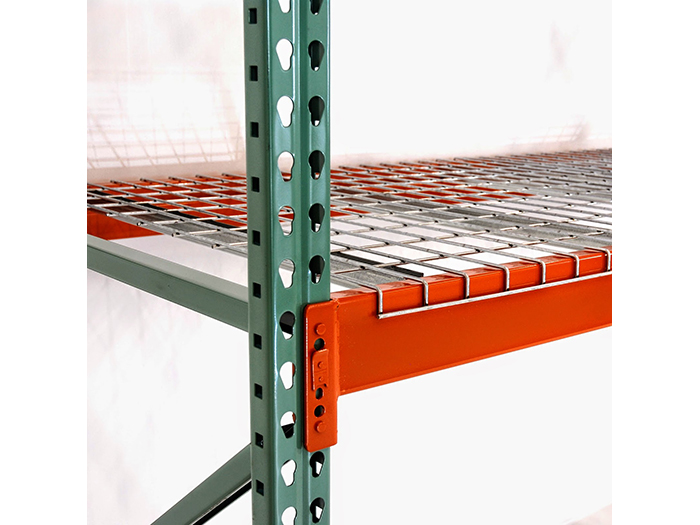

- Supports wire decking or steel panels
Uprights
- H240 uprights (North American standard)
- Heavy-duty steel frame structure
- Multiple size configurations
- Precision punched connection holes
Accessories
- Wire decking
- Pallet support bars
- Column protectors
- Back mesh & safety locks
Accessories enhance safety, improve efficiency, and optimize warehouse operations.
Technical Specifications
| Item | Details |
|---|---|
| Load Capacity | 1000 – 4000 kg per level |
| Beam Length | 1800 / 2000 / 2400 / 2700 mm |
| Beam Section | 80×50 / 100×50 / 120×50 mm |
| Upright Height | 2000 – 12000 mm |
| Upright Depth | 600 / 800 / 900 / 1000 mm |
| Material | Q235 / Q355 steel |
| Finish | Powder coated / Galvanized |
| Color | RAL standard (custom available) |
Applications
- Warehousing & logistics
- Distribution centers
- Industrial storage
- E-commerce fulfillment
Customization Options
- Custom sizes based on layout
- Different load capacities
- OEM & ODM supported
- Compatible with multiple pallet types
