Pallet Shuttle Guide Rail
Pallet Shuttle Guide Rail

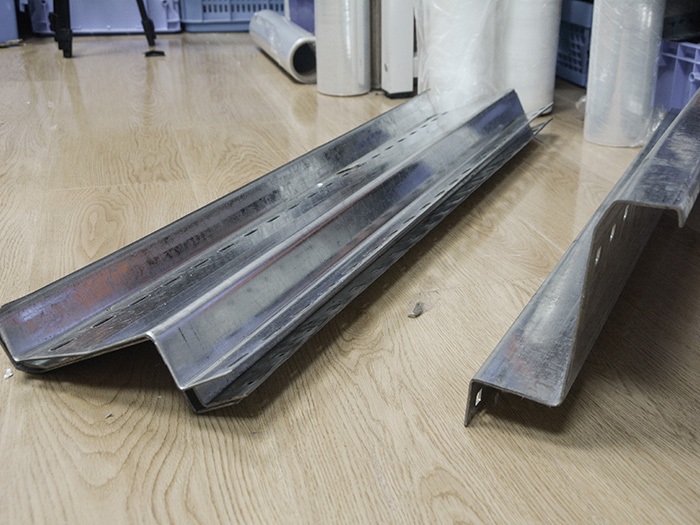

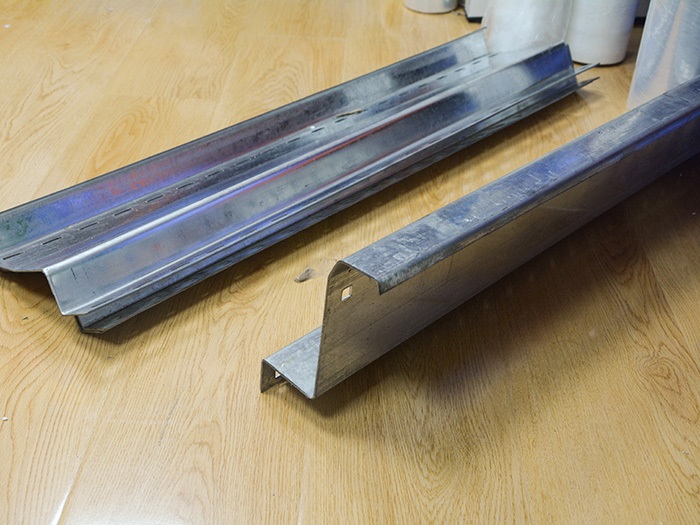

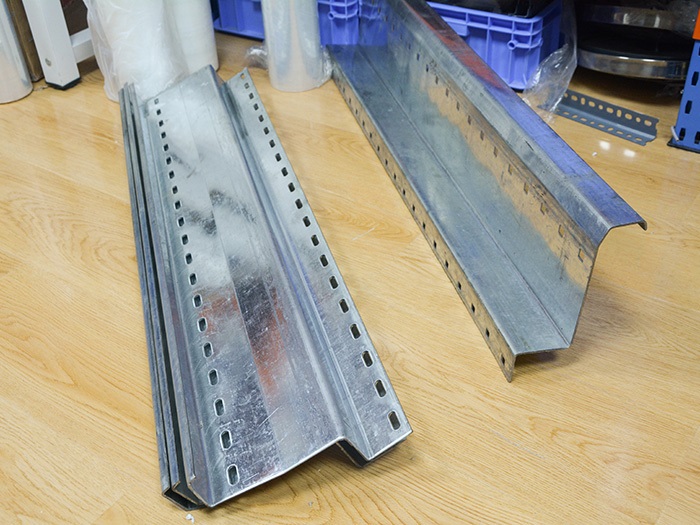

Pallet Shuttle Guide Rail is a key component of radio shuttle pallet racking systems.
Installed inside rack lanes to provide a stable running path for shuttle carts.
Designed for heavy-duty warehouse applications, ensuring smooth movement, accurate positioning, and reliable operation of pallet shuttle systems.
A Pallet Shuttle Guide Rail is a key component installed inside radio shuttle pallet racking lanes to provide a stable running path for pallet shuttle carts. It helps guide the shuttle cart during automatic pallet storage and retrieval operations, ensuring smooth movement and accurate positioning inside deep storage channels.
Manufactured from high-strength steel, the guide rail works with the shuttle cart, pallet support rails, and rack structure to ensure reliable operation in heavy-duty warehouse conditions.
Main Functions
- Provides a precise running track for pallet shuttle carts
- Reduces shuttle deviation during pallet loading and unloading
- Improves operational stability in deep-lane storage systems
- Supports efficient high-density warehouse storage applications
Features of Pallet Shuttle Guide Rail
Heavy Duty Steel Construction
Manufactured from high-strength steel profiles, the pallet shuttle guide rail is designed to withstand repeated shuttle cart movement and heavy warehouse operating conditions.
Precise Shuttle Guidance
The guide rail keeps pallet shuttle carts moving accurately along the rack lane, reducing deviation and improving operational stability during pallet handling.
Durable Surface Treatment
Available with powder coating or galvanized finishes, the guide rail offers improved corrosion resistance for different warehouse environments.
Customizable Design
Different rail lengths, profiles, and specifications can be customized to meet specific requirements for radio shuttle racking systems.
Technical Specifications of Pallet Shuttle Guide Rail
Designed for Radio Shuttle Racking Systems
The pallet shuttle guide rail is engineered to provide stable guidance for automatic shuttle carts in deep-lane pallet storage systems.
Specifications can be customized according to rack depth, shuttle cart requirements, pallet dimensions, and warehouse operating conditions.
| Product Name | Pallet Shuttle Guide Rail |
| Material | High Strength Steel |
| Application | Radio Shuttle Pallet Racking System |
| Compatible Shuttle Load | 1500kg – 2000kg Pallet Shuttle Cart |
| Rail Thickness | 3.0 – 5.0 mm |
| Surface Treatment | Powder Coated / Galvanized |
| Customization | Available |
Applications of Pallet Shuttle Guide Rail
Pallet Shuttle Guide Rail is widely used in high-density storage environments equipped with radio shuttle pallet racking systems. It helps ensure smooth and reliable shuttle cart operation in different warehouse applications.
Cold Storage Warehouses
Ideal for frozen and chilled storage facilities where high-density pallet storage and reliable automated handling are required.
Food & Beverage Distribution
Supports efficient pallet storage for food and beverage warehouses using FIFO or LIFO inventory management methods.
Manufacturing Facilities
Provides stable shuttle cart guidance for storing raw materials, components, and finished products in production environments.
Logistics Distribution Centers
Suitable for large-scale warehouses that require high storage density and efficient pallet handling operations.
Why Choose Our Pallet Shuttle Guide Rail?
Quality Steel Materials
Manufactured with high-quality steel materials to ensure reliable strength, durability, and stable performance in heavy-duty shuttle racking systems.
Precision Manufacturing
Advanced production processes ensure accurate dimensions and consistent quality for smooth integration with radio shuttle pallet racking systems.
Customized Solutions
We provide customized guide rail solutions based on rack depth, shuttle cart specifications, pallet sizes, and project requirements.
Global Project Experience
Experienced in supplying warehouse racking components for international customers with different storage and operational requirements.
