Power Casters Wheels for Medical & Logistics
Our Power Casters Wheels are engineered to deliver reliable electric mobility for both medical equipment and logistics trolleys. These advanced motorized caster wheels reduce manual effort, improve safety, and ensure smooth transport in hospitals, warehouses, and industrial facilities.
Designed with a brushless DC motor, the power casters wheels operate quietly and provide spark-free performance with extended service life. The strong steel frame enhances stability and load-bearing capacity, while the rubber tread minimizes noise, reduces vibration, and increases wear resistance. Whether in medical environments or logistics operations, these caster wheels guarantee efficient and dependable performance.
Key Features of Power Casters Wheels
Automatic Motion: Forward and reverse driving, automatic retraction and extension, and safe lifting with a worm gear motor.
Quiet Motorized Operation: Brushless DC motor ensures reliable, spark-free, and long-lasting power.
Comfort & Stability: Integrated spring damping system reduces vibrations for smoother handling.
Speed Adjustment: Stepless variable speed with cruise control for consistent movement.
Smart Battery System: 24V lithium-ion battery with Panasonic 18650 cells, offering real-time power display and intelligent protection.
Heavy-Duty Construction: Steel frame and durable rubber tread designed for medical and logistics applications.
User-Friendly Controls: Wired controller with ergonomic grip for easy use in medical and warehouse trolleys.
Technical Specifications – Power Casters Wheels
Electric Power-Assisted Wheel
Wheel Diameter: 113 mm
Wheel Width: 50 mm
Motor Power: 200 W
Rated Voltage: DC 24V
Rated Torque: 6.5 N·m
Speed Range: 0–3.5 km/h
Lifting Stroke: 0–60 mm
Installation Height: 200–230 mm
Load Capacity: 200 kg dynamic
Climbing Ability: 3°
Weight: 7.8 kg
Temperature Range: -5 °C to +50 °C
Endurance: up to 8 km
Cable Length: 1 m

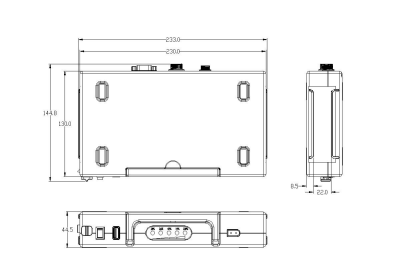

Lithium-Ion Battery Controller
Output Voltage: 22.4–29.4 V
Output Current: 0–10 A
Capacity: 4 Ah
Charging Voltage: DC 29.4 V
Charging Current: 2 A
Overcurrent Protection: 17.6 A (±2 A)
Dimensions: 233 × 144.8 × 44.5 mm

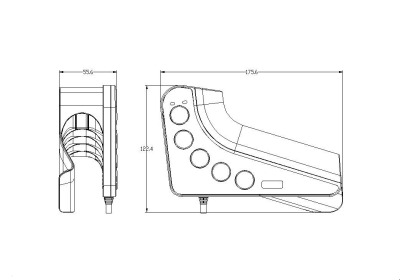

Wired Controller
Rated Voltage: 25.9 V
Standby Current: ≤25 mA
Power Consumption: ≤0.65 W
Dimensions: 122.4 × 175.6 × 55.6 mm
Applications of Power Casters Wheels
Medical Equipment: Hospital beds, patient transfer systems, diagnostic devices.
Logistics Trolleys: Warehouse carts, material handling platforms, and distribution trolleys.
Industrial Mobility: Heavy-duty equipment requiring powered caster wheels.
By integrating Power Casters Wheels into your medical equipment or logistics trolleys, you achieve higher efficiency, reduced labor, and improved safety. These motorized caster wheels represent the next step in smart mobility solutions for healthcare and industrial logistics.
