This guide explains how mobile pallet racking system cost is actually formed in real warehouse projects — based on engineering structure, site conditions, safety compliance, and operational requirements.
Instead of giving you a single price, this article shows where your budget really goes and how to control cost without sacrificing long-term safety and performance.
1. What Is a Mobile Pallet Racking System (Context for Cost Evaluation)

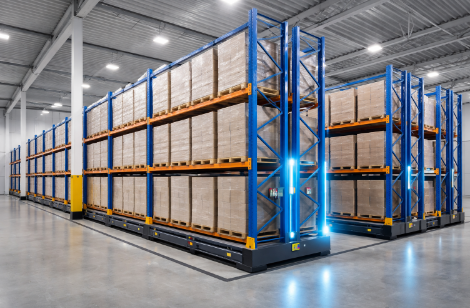

A mobile pallet racking system places standard pallet racks on motorized mobile bases that move along floor rails.
Only one working aisle opens at a time, allowing multiple rack rows to be stored in a much smaller footprint.
Compared with conventional fixed racking, a mobile system includes:
- Powered drive units
- Rail guidance systems
- Electrical and control components
- Multiple safety protection devices
Because of this structure, its cost is closer to a mechanical and electrical automation project than a simple racking purchase.
Mobile racking is typically used in:
- Space-restricted warehouses
- Cold storage and freezer facilities
- High-value land locations
- Facilities where building expansion is impossible
Understanding this background is essential before evaluating cost.
2. Real Project Cost Structure (How Your Budget Is Actually Spent)
A mobile pallet racking system is not priced as a single product.
Your total project cost is usually composed of several major parts.
Racking structure
This includes upright frames, beams, bracing, anchors, and accessories.
The cost depends on pallet weight, rack height, beam span, and seismic and deflection requirements.
Heavy-duty and high-bay designs require thicker steel sections and additional reinforcement.
Mobile bases and drive system
Each rack row sits on an independent powered base.
The base system normally includes motors and gearboxes, wheels and rail guidance units, base frames and movement control modules.
This is one of the largest cost portions of a mobile racking project.
Rail system and floor preparation
Rails must be accurately embedded or fixed into the concrete floor.
Cost is strongly influenced by slab thickness, flatness tolerance, and cutting, grouting and leveling work.
Poor floor conditions can significantly increase project cost.
Electrical and control system
This includes control cabinets, power distribution, operator panels, sensors and limit devices.
If your warehouse requires access control or WMS integration, additional programming and wiring will be required.
Safety and protection equipment
Typical items include laser or photoelectric scanners, emergency stop systems, obstacle detection and aisle presence protection.
Safety components are mandatory in professional installations and directly affect pricing.
Installation and commissioning
This covers mechanical assembly, rail alignment, electrical connection, testing and handover.
Installation cost varies widely depending on site readiness and working conditions.
3. Key Factors That Truly Drive Mobile Pallet Racking System Cost
Warehouse layout and geometry
Long travel distances, multiple zones, curved layouts or obstacles increase rail length, control complexity and installation time.
Simple, straight and symmetrical layouts are always more cost-efficient.
Load rating and pallet weight
Heavier pallets require stronger rack frames, higher capacity bases and more powerful drive units.
The cost increase is not linear.
Rack height and structural class
Higher racks require stricter deflection limits, higher stability margins and additional structural checks.
This raises engineering and fabrication cost.
Seismic and regional design requirements
In many regions, mobile racking must meet local seismic rules, affecting base anchoring, rack bracing and rail fixing methods.
Operating environment
Cold storage and freezer projects require low-temperature motors, special cable protection and anti-condensation solutions.
5. Industry Safety and Design Standards That Affect Cost
Professional mobile racking systems are normally designed in line with recognized industry standards.
In the United States market, engineering practices are commonly aligned with the Rack Manufacturers Institute (RMI).
Structural design of steel storage racks is typically based on ANSI MH16.1, which defines load combinations, deflection limits and structural performance requirements.
From a workplace safety perspective, system installation and operating environment must also comply with general warehouse safety obligations referenced by OSHA.
6. Typical Price Range by Application Type
Ambient temperature warehouses
Usually the most cost-efficient projects with standard motors and simpler protection configurations.
High-bay logistics centers
Higher rack height increases rack structure cost, base capacity and anchoring requirements.
Cold storage and freezer warehouses
The highest cost category due to cold-rated components and higher safety redundancy.
Retrofit projects
Retrofit projects often require rail embedding, floor correction and layout compromises.
7. Hidden and Often Overlooked Costs in Mobile Racking Projects
- Floor flatness correction
- Concrete cutting and re-grouting
- Power supply upgrades
- Control cabinet room preparation
- Delays caused by unfinished site conditions
8. Real Buyer Mistakes That Increase Total Project Cost
Underestimating future capacity growth
Designing only for current demand often leads to early system modification or replacement.
Ignoring operational access requirements
Poor aisle planning increases control complexity and system cost.
Selecting minimum configuration for heavy usage
Low-spec components may reduce initial price but increase long-term ownership cost.
Skipping professional layout simulation
Without simulation, costly layout changes are often discovered too late.
9. How to Evaluate a Supplier’s Quotation Professionally
- Detailed layout drawings
- Rack load tables and bay capacities
- Base capacity and drive specifications
- Rail layout and fixing method
- Control and safety system description
Deflection limits, seismic assumptions and installation scope should always be clearly stated.
10. When a Mobile Pallet Racking System Is the Right Investment
- Building expansion is not possible
- Land or rental cost is high
- Storage density is the main objective
- Throughput is moderate and controlled
Mobile racking is not designed for very high traffic operations where multiple aisles must remain open simultaneously.
11. Practical Checklist Before Requesting a Final Quotation
- Pallet dimensions and maximum weight
- Required storage capacity and SKU profile
- Target rack height
- Operating temperature and humidity
- Local approval requirements
- Future expansion expectations
12. Summary: How to Control Your Mobile Pallet Racking System Cost Without Sacrificing Safety
Mobile pallet racking system cost is driven mainly by engineering configuration, structural and drive capacity, site conditions and compliance requirements.
The most effective cost control approach is not reducing specifications, but optimizing layout, selecting the correct load class, preparing the site properly and working with suppliers who provide transparent engineering documentation.
A well-designed mobile racking system should be treated as a long-term infrastructure investment rather than a simple storage product purchase.
Post time: Feb-24-2026
