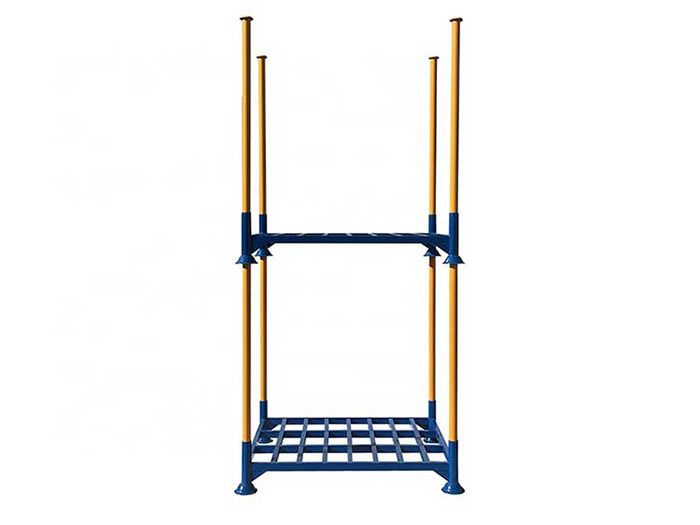

Metal Column Stacking Rack

This metal column stacking rack is a heavy-duty industrial storage system designed for efficient handling of fragile, pressure-sensitive, and irregular-shaped goods that cannot be safely stacked using standard pallets or traditional racking systems. It provides a stable, reusable, and space-efficient solution for warehouse storage and logistics operations.

Compared with conventional pallet stacking methods, this detachable stacking rack system significantly improves warehouse organization and vertical space utilization while reducing product damage during storage and transportation. It is widely used in industrial storage environments requiring flexible and high-strength handling solutions.

The system supports stacking up to 4 levels high, enabling high-density storage in limited warehouse space. Each unit offers a load capacity of up to 1000kg when stacked and up to 2000kg when used as a single base frame, making it suitable for demanding industrial applications.

Main Advantages

● Designed for fragile, pressure-sensitive, and irregular-shaped goods that are difficult to palletize
● Stackable up to 4 layers to maximize vertical warehouse space utilization
● Heavy-duty load capacity: 1000kg per stacked unit / 2000kg single base structure
● Detachable column design for easy assembly, disassembly, and transport
● Columns can be stored inside the base frame to save space and prevent loss
● Rounded column structure ensures secure stacking and improves operational safety
● Base frame can be customized based on load requirements and application needs
● Optional base surface: steel plate or wire mesh deck for different storage conditions
● Reusable structure reduces long-term warehouse equipment cost
● Suitable for both static storage and internal logistics circulation

Technical Specifications

● Material: Low carbon steel with industrial strength performance
● Load capacity: 1000kg (stacked condition) / 2000kg (single base unit)
● Stacking height: Up to 4 layers depending on warehouse requirements
● Surface treatment: High-quality powder coating for corrosion resistance and long service life

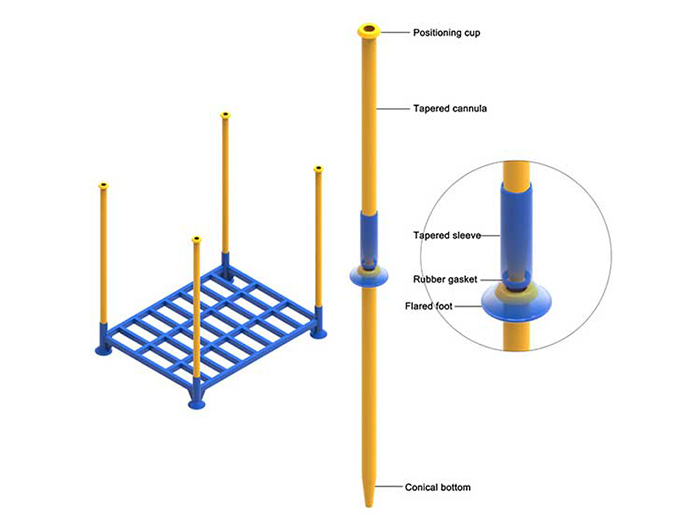

● Structure: Detachable column + reinforced base frame system

Applications

This metal column stacking rack system is widely used across multiple industrial sectors where flexible, high-strength storage is required:● Warehouse and logistics distribution centers
● Manufacturing and production facilities
● Automotive parts and component storage
● Industrial bulk material handling
● Temporary storage and transportation operations
● Export packaging and warehouse consolidation areas

Why Choose This Stacking Rack System

This stacking rack system provides a practical alternative to fixed pallet racking systems by offering flexibility, reusability, and fast deployment. It helps businesses improve warehouse efficiency by reducing wasted space and simplifying storage organization.

For companies dealing with irregular goods or high-volume storage turnover, this system delivers a cost-effective and scalable storage solution that adapts to changing operational demands.
