End of Aisle Guard for Pallet Racking | Rack Protection
Product Overview

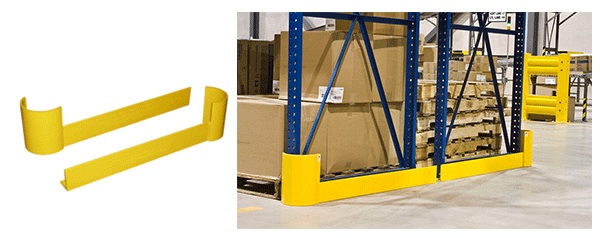

The end of aisle guard is a heavy-duty rack protection accessory designed to protect pallet racking systems from forklift impacts at the most vulnerable area of a rack row.
At the ends of warehouse aisles, forklifts frequently turn and maneuver, increasing the risk of collisions with rack columns. Installing end of aisle guards helps absorb impact forces before they reach the rack structure, reducing the risk of structural damage and improving overall warehouse safety.
Aceally end of aisle guards are manufactured from thick structural steel and finished with a high-visibility powder coating, providing durable protection for pallet racking systems in busy warehouse environments.
End of Aisle Guard Installation and Application

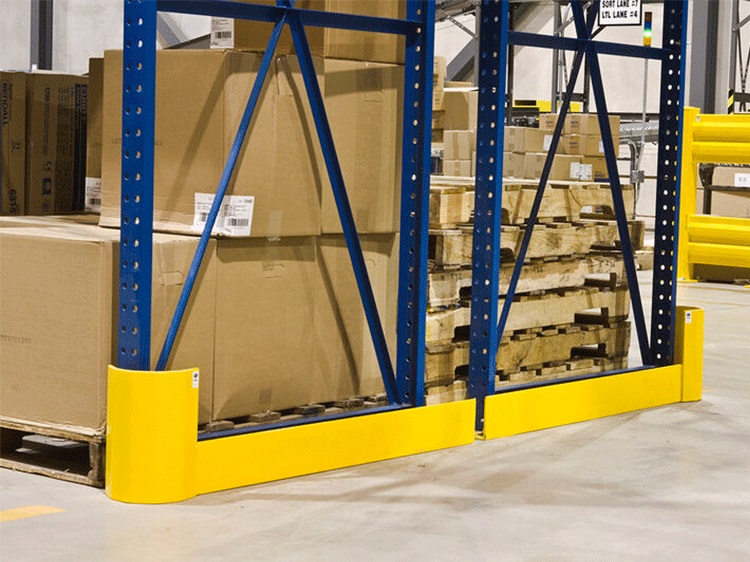

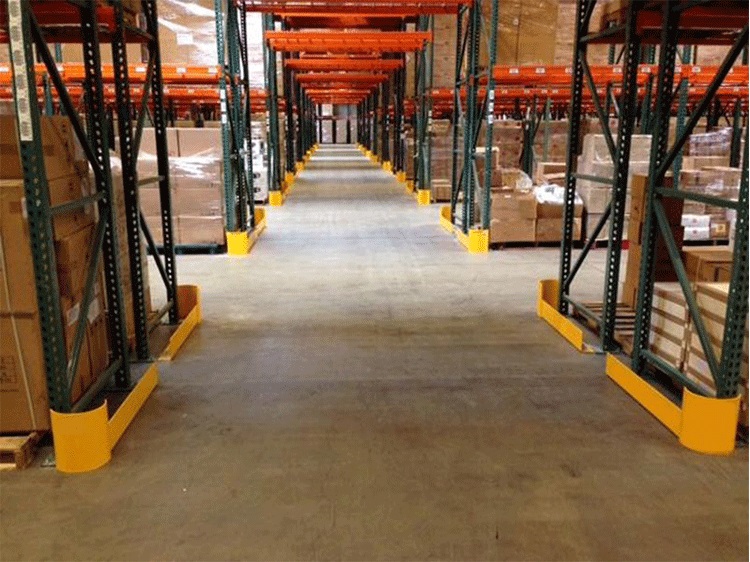

End of aisle guards are installed at the front of pallet rack rows to protect the lower portion of rack uprights. They act as a physical barrier that absorbs forklift impacts and prevents damage to the racking structure.
These guards are commonly used in:
- Distribution centers
- Manufacturing warehouses
- Logistics storage facilities
- Retail and supermarket warehouses
They are suitable for a wide range of pallet racking systems and can be installed in both new and existing warehouse installations.
Key Advantages of End-of-Aisle Rack Protection
Product Specifications
| Height | 12 inches |
| Steel Thickness | 5/16 inch |
| Base Plate | 5″ × 3″ × 7/16″ thick steel angle base |
| Design Options | Left end, right end, or double-end design |
| Anchor Bolts | Designed for 3/4″ diameter anchors (anchors sold separately) |
| Standard Lengths | 42″ and 48″ available |
| Optional Accessories | Filler angle lengths available |
| Customization | Custom sizes and designs available upon request |
Why Rack Protection Is Important
The end of a rack row is one of the most vulnerable areas in any warehouse storage system. Forklifts turning at the end of aisles can easily collide with exposed rack columns.
If a rack frame becomes damaged and is not repaired quickly, the structural integrity of the pallet racking system may be compromised. Under heavy pallet loads, this damage can lead to serious rack failure.
Installing end of aisle guards and other rack protection accessories helps minimize these risks and maintain a safer warehouse environment.
Frequently Asked Questions
End of aisle guards are designed to protect pallet rack columns from forklift impacts at the ends of warehouse aisles.
They are typically installed at the front of pallet rack rows where forklifts frequently turn.
Yes. End of aisle guards are designed to fit most standard pallet racking systems and can also be customized for specific rack layouts.
